Extra Module 00: Structural Verilog Coding
Up to now, you’ve been prototyping quickly with a single always @(posedge clk) that reads like your algorithm. That’s great for small/medium blocks. As designs grow, teams often shift to a structural style that mirrors real digital methodology: each register has a single point of ownership (its own clocked block), with tiny combinational helpers to express “next” intent. This improves readability, timing clarity, and scalability, without abandoning your algorithmic flow.
Design Problem: Stream 8 Samples, Report Sum/Min/Max
Design a synchronous module that ingests exactly eight 8-bit samples from a stream (gated by a valid signal), then produces their sum, minimum, and maximum, along with a one-cycle done pulse indicating the results are ready. The design must be clocked and reset synchronously.
We will implement it in two styles:
- Monolithic: one
always @(posedge clk)block with an FSM that owns all registers. - Structural: split responsibilities so that each register has a single point of ownership (one clocked block per register), with small combinational helpers as needed.
Inputs
clk: Clock. All sequential logic triggers on the rising edge.rst: Synchronous, active-high reset. When asserted, all internal state and outputs must return to defined reset values.start: A (typically one-cycle) pulse signaling the module to begin collecting a new batch of 8 samples.- If asserted while the module is already busy, it must be ignored (no effect).
sample_in[7:0]: The current sample value on the input stream.sample_valid: When1, indicatessample_inholds a new sample that should be accepted this cycle if the module is currently busy collecting.
Outputs
busy: When1, the module is in the middle of collecting samples (i.e., after a validstartuntil the 8th sample is accepted).done: A one-cycle pulse asserted exactly when the final results are captured/updated.sum_out[10:0]: The sum of the 8 accepted samples (8 × 255 = 2040 → 11 bits).min_out[7:0]: The minimum of the 8 accepted samples.max_out[7:0]: The maximum of the 8 accepted samples.
Outputs (
sum_out,min_out,max_out) must update once per batch, on the same cycle thatdoneis asserted, and remain unchanged until the next batch completes.

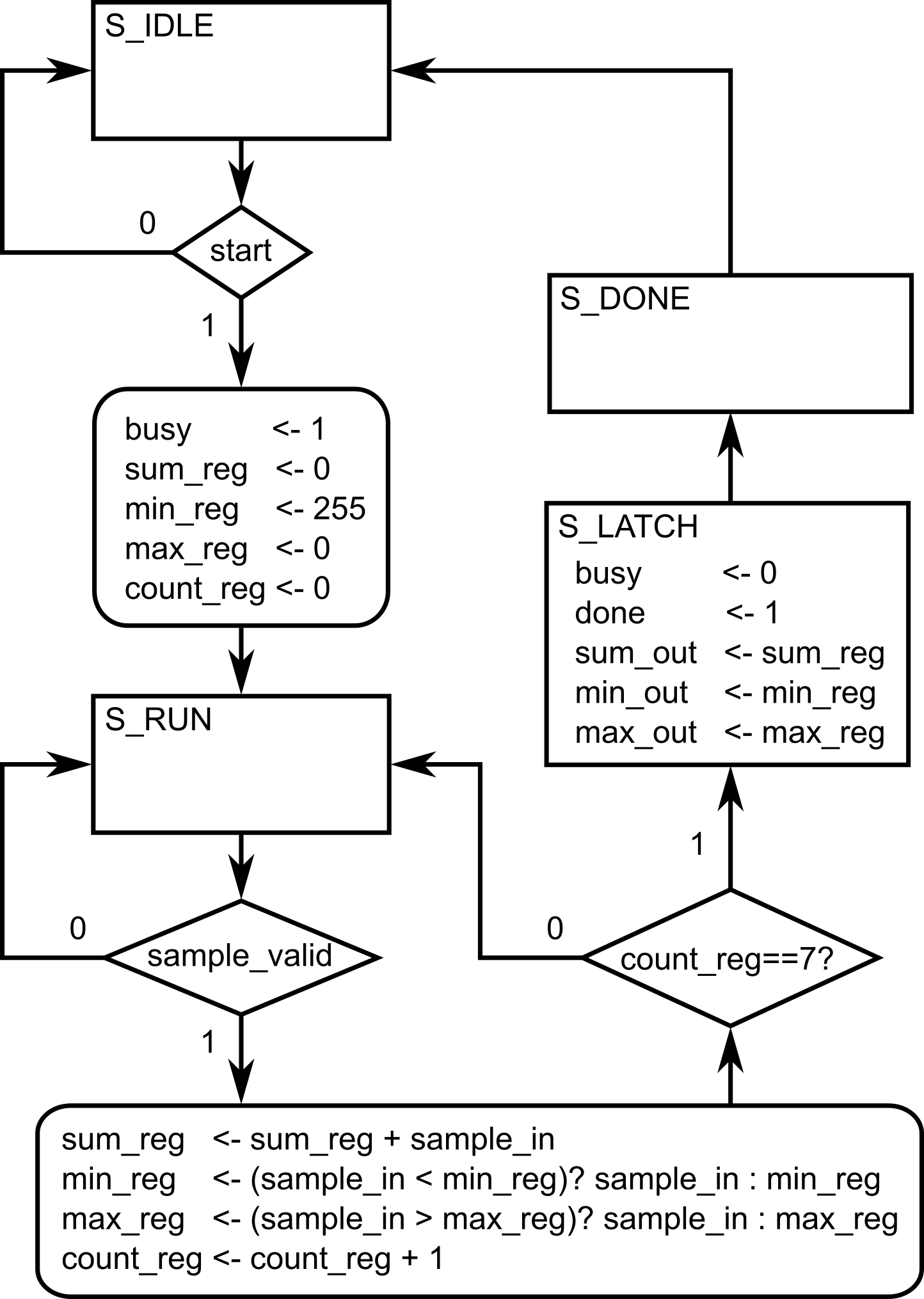

Monolithic style (single always@ block)
A single always @(posedge clk) owns the state machine, counters, accumulators, outputs, and pulses. This is close to our earlier “algorithm-in-one-block” style, presented in the previous modules. (This is also affectionally referred to as Adel-style coding, reflecting his preferred way of describing algorithms, enabling very rapid, ‘in-just-one-sitting’ implementations)
module stats8_monolithic (
input clk,
input rst, // sync, active-high
input start, // pulse to begin a new batch
input [7:0] sample_in,
input sample_valid,
output reg busy,
output reg done, // 1-cycle pulse when outputs valid
output reg [10:0] sum_out, // sum of 8 bytes (max 2040 -> 11 bits)
output reg [7:0] min_out,
output reg [7:0] max_out
);
localparam [1:0] S_IDLE=2'd0, S_RUN=2'd1, S_LATCH=2'd2, S_DONE=2'd3;
reg [1:0] state;
reg [10:0] sum_reg;
reg [7:0] min_reg, max_reg;
reg [2:0] count_reg; // 0..7 accepted samples
always @(posedge clk) begin
if (rst) begin
state <= S_IDLE;
busy <= 1'b0;
done <= 1'b0;
sum_reg <= 11'd0;
min_reg <= 8'hFF;
max_reg <= 8'h00;
count_reg <= 3'd0;
sum_out <= 11'd0;
min_out <= 8'd0;
max_out <= 8'd0;
end else begin
case (state)
S_IDLE: begin
if (start) begin
busy <= 1'b1;
sum_reg <= 11'd0;
min_reg <= 8'hFF;
max_reg <= 8'h00;
count_reg <= 3'd0;
state <= S_RUN;
end
end
S_RUN: begin
if (sample_valid) begin
sum_reg <= sum_reg + sample_in;
min_reg <= (sample_in < min_reg) ? sample_in : min_reg;
max_reg <= (sample_in > max_reg) ? sample_in : max_reg;
count_reg <= count_reg + 3'd1;
if (count_reg == 3'd7)
state <= S_LATCH; // 8th sample just accepted
end
end
S_LATCH: begin
sum_out <= sum_reg;
min_out <= min_reg;
max_out <= max_reg;
done <= 1'b1;
busy <= 1'b0;
state <= S_DONE;
end
S_DONE: begin
done <= 1'b0;
state <= S_IDLE;
end
default: state <= S_IDLE;
endcase
end
end
endmodule✅Monolithic coding style advantages: fast to write; reads like the algorithm; people with programming backgrounds can easily understand the sequence of events (given a relatively small FSM/code length)
❌Limits: as logic grows, a single block can get dense; ownership of each register can become less obvious; reasoning about per-register timing intent may require more careful reading.

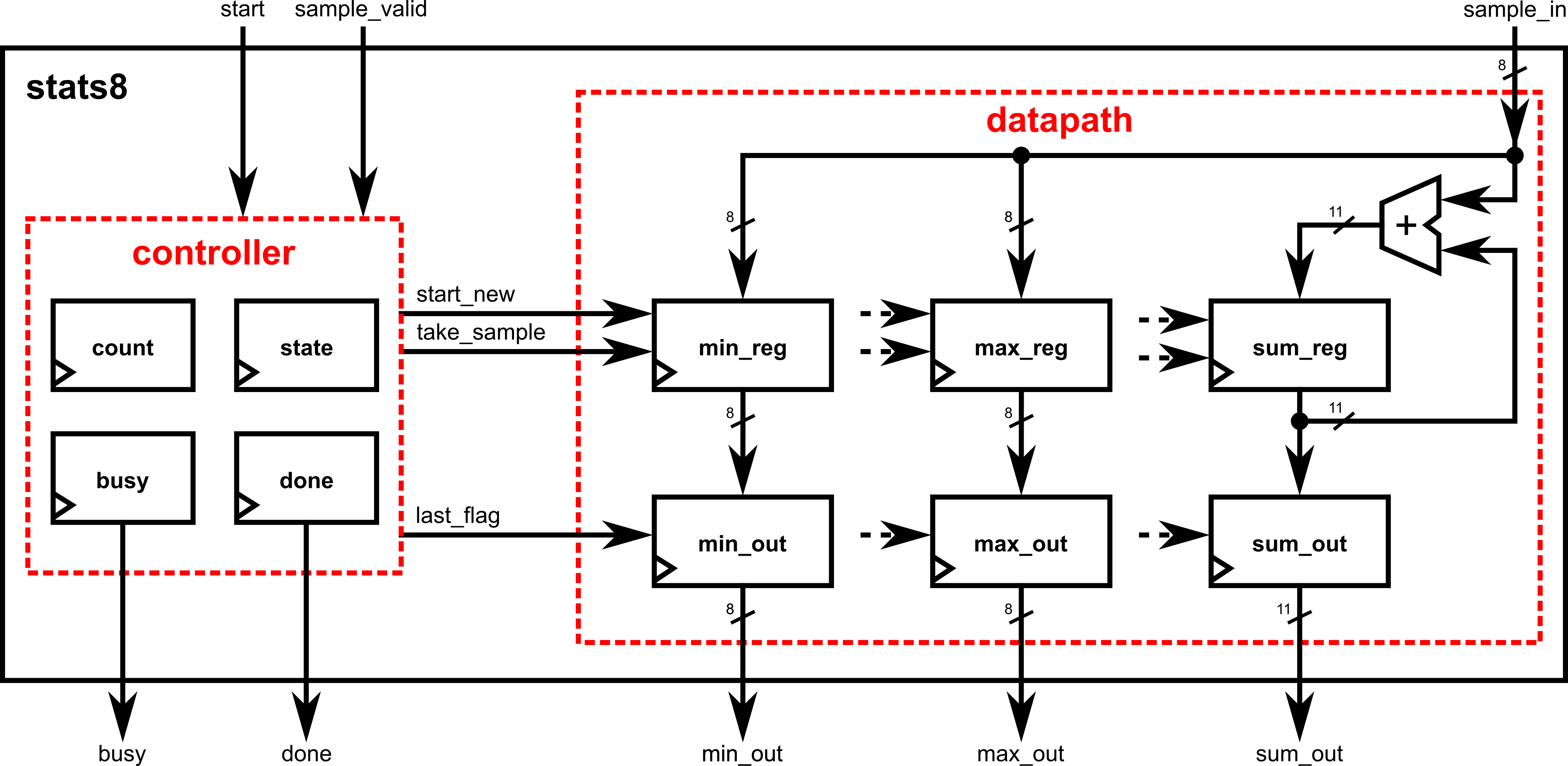

Structured style (separate always@ blocks)
Here, each register has its own always @(posedge clk); small wires express “next” intent cleanly. This clarifies who owns what, and makes timing/dataflow explicit. (This, on the other hand, is referred to as Fred-style coding, reflecting his preferred way of describing digital systems like a true digital designer.)
// stats8_structured
// Each register gets its own always block (single point of ownership).
// Small combinational helpers express intent and timing clearly.
module stats8_structured (
input clk,
input rst, // sync, active-high
input start, // pulse to begin a new batch
input [7:0] sample_in,
input sample_valid,
output reg busy,
output reg done, // 1-cycle pulse when outputs valid
output reg [10:0] sum_out, // sum of 8 bytes (max 2040 -> 11 bits)
output reg [7:0] min_out,
output reg [7:0] max_out
);
localparam [1:0] S_IDLE=2'd0, S_RUN=2'd1, S_LATCH=2'd2, S_DONE=2'd3;
reg [1:0] state;
reg [2:0] count_reg;
// ----------------------------------------------------------------
// State
// ----------------------------------------------------------------
always @(posedge clk) begin
if (rst) begin
state <= S_IDLE;
end else begin
case (state)
S_IDLE: begin
if (start) begin
state <= S_RUN;
end
end
S_RUN: begin
if ((sample_valid) && (count_reg == 3'd7)) begin
state <= S_LATCH; // 8th sample just accepted
end
end
S_LATCH: begin
state <= S_DONE;
end
S_DONE: begin
state <= S_IDLE;
end
default: state <= S_IDLE;
endcase
end
end
// ----------------------------------------------------------------
// Combinational helpers (control signals)
// ----------------------------------------------------------------
wire start_new = (state == S_IDLE) & start;
wire take_sample = (state == S_RUN) & sample_valid;
wire last_flag = (state == S_LATCH);
// ----------------------------------------------------------------
// COUNTER: how many samples have been accepted
// ----------------------------------------------------------------
always @(posedge clk) begin
if (rst) begin
count_reg <= 3'd0;
end else begin
if (start_new) begin
count_reg <= 3'd0;
end else if (take_sample) begin
count_reg <= count_reg + 3'd1;
end
end
end
// ----------------------------------------------------------------
// SUM accumulator (11 bits)
// MIN tracker
// MAX tracker
// ----------------------------------------------------------------
reg [10:0] sum_reg;
reg [7:0] min_reg;
reg [7:0] max_reg;
always @(posedge clk) begin
if (rst) begin
sum_reg <= 11'd0;
min_reg <= 8'hFF;
max_reg <= 8'h00;
end else begin
if (start_new) begin
sum_reg <= 11'd0;
min_reg <= 8'hFF;
max_reg <= 8'h00;
end else if (take_sample) begin
sum_reg <= sum_reg + sample_in;
if (sample_in < min_reg) min_reg <= sample_in;
if (sample_in > max_reg) max_reg <= sample_in;
end
end
end
// ----------------------------------------------------------------
// OUTPUT LATCHES
// ----------------------------------------------------------------
always @(posedge clk) begin
if (rst) begin
sum_out <= 11'd0;
min_out <= 8'd0;
max_out <= 8'd0;
end else begin
if (last_flag) begin
sum_out <= sum_reg;
min_out <= min_reg;
max_out <= max_reg;
end
end
end
// ----------------------------------------------------------------
// BUSY flag: asserted after start, deasserted on last sample
// ----------------------------------------------------------------
always @(posedge clk) begin
if (rst) begin
busy <= 1'b0;
end else begin
if (start_new) begin
busy <= 1'b1;
end else if (last_flag) begin
busy <= 1'b0;
end
end
end
// ----------------------------------------------------------------
// DONE pulse (1 cycle) exactly when outputs are captured
// ----------------------------------------------------------------
always @(posedge clk) begin
if (rst) begin
done <= 1'b0;
end else begin
if (last_flag) begin
done <= 1'b1;
end else begin
done <= 1'b0;
end
end
end
endmodule✅Structured coding style advantages: every register has one owner; intent/timing are explicit; easier to scale, review, and pipeline; this mirrors how large digital systems are partitioned.
❌Limits: as logic grows, the number of lines in the code can get very long; people coming from a programming background may struggle to understand the intended algorithm due to block separation.
How to refactor from monolithic → structured (recipe)
List the registers you see in the monolithic block (
busy,count_reg,sum_reg,min_reg,max_reg, and output latches).Create tiny helper wires that describe when and what (e.g.,
start_new,take_sample,last_sample). Keep them combinational.For each register, make a dedicated
always @(posedge clk)that:- Handles reset and batch start defaults,
- Updates only on its enabling condition (e.g.,
take_sample). - Owns no other registers.
Latch outputs where appropriate (often when a final condition becomes true).
Keep pulses (like
done) in their own register block to avoid accidental stretching.
Benefits of the structural approach (becoming a true digital designer)
- ✅Single point of ownership per register → eliminates accidental double drivers and clarifies responsibility.
- ✅Timing intent is explicit: readers see exactly when and why each register updates; easier to reason about one-cycle “old/new” behavior.
- ✅Scales to bigger blocks: you can add features by adding another owner block and a few helper wires, instead of growing a monolith.
- ✅Closer to real methodology: mirrors how pipelines, datapaths, and control/status registers are partitioned in industry.
- ✅Refactoring is local: changing
min_reglogic doesn’t risk unintended edits tobusyorsum_reg. - ✅Review & verification friendly: easier code reviews; formal or assertion checks can be tied to specific owners/signals.
- ✅Local debugging/reasoning: debugging “sum looks wrong” means looking at the sum block, not a 200-line state machine.
Pitfalls & guardrails (structural style)
- ⚠️Don’t multi-drive a reg: one owner block per reg, period.
- ⚠️Keep helpers combinational (simple
assignorwireexpressions). Don’t hide state in helpers. - ⚠️Reset semantics must match across owners (use the same reset polarity/priority in the module).
- ⚠️Mind the one-cycle rule: cross-block dependencies still use old registered values until the next edge; design helpers like
last_sampleto make that explicit. - ⚠️Name consistently:
*_regfor owned regs,*_outfor outputs,*_nextonly if you introduce next-value combinational signals.
