Extra Module 01: Advanced Verilog Syntax
This module gives you higher-level tools for building bigger, more reusable blocks without losing the “algorithm → HDL” mindset. We’ll cover parameters, arrays, for loops in clocked blocks, file-driven initialization (simulation), generate/genvar, and conditional compilation. These topics complement the “fast prototype → verify” flow you’ve been using and build on ideas already introduced.
Parameterize widths/depths for reusable components
Why: One module, many sizes. Parameters let you change bus widths, depths, and timing constants from the top module without editing the internals.
Example: Parameterized counter (width + terminal count)
module flex_counter #(
parameter WIDTH = 8, // number of bits in counter
parameter MAX = 8'd200 // terminal count value (sized to WIDTH)
)(
input clk,
input reset,
input enable,
output reg [WIDTH-1:0] count,
output reg tick // 1-cycle pulse when count == MAX
);
always @(posedge clk) begin
if (reset) begin
count <= {WIDTH{1'b0}}; // use replication syntax to set a defined number of bits (determined by WIDTH) to be 0
tick <= 1'b0;
end else if (enable) begin
if (count == MAX) begin
count <= {WIDTH{1'b0}};
tick <= 1'b1;
end else begin
count <= count + {{(WIDTH-1){1'b0}},1'b1};
tick <= 1'b0;
end
end else begin
tick <= 1'b0;
end
end

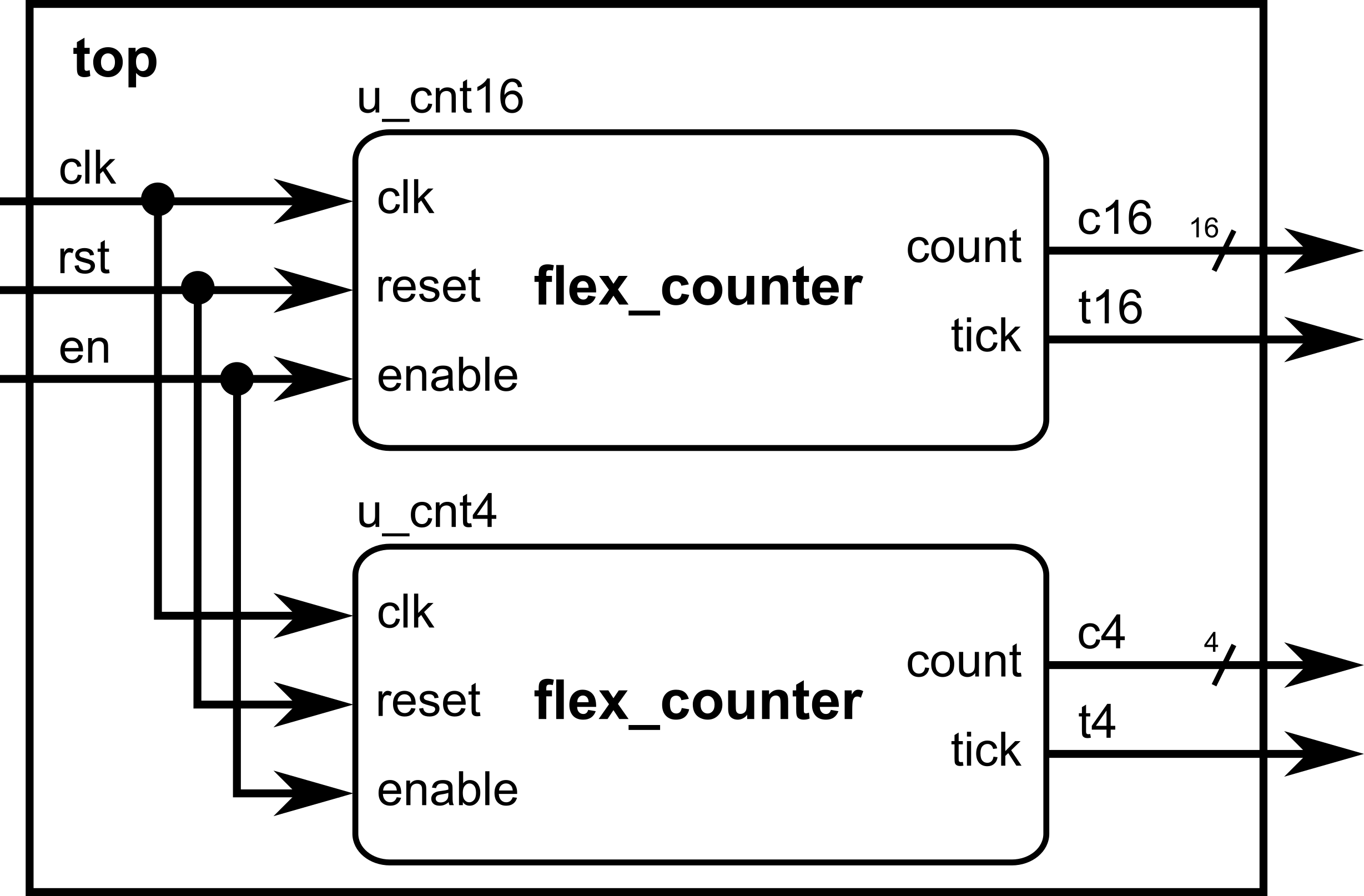

endmoduleTop-level overrides (redefine from the instantiation site):
module top (
input clk, input rst, input en, output [15:0] c16,
output t16,
output [3:0] c4,
output t4);
// 16-bit counter to 50000
flex_counter #(.WIDTH(16), .MAX(16'd50000)) u_cnt16 (
.clk(clk), .reset(rst), .enable(en), .count(c16), .tick(t16)
);
// 4-bit counter to 9
flex_counter #(.WIDTH(4), .MAX(4'd9)) u_cnt4 (
.clk(clk), .reset(rst), .enable(en), .count(c4), .tick(t4)
);
endmodule
ℹ️Parameters let top-level design make decisions (bus sizes, memory depth) without touching module code.
Multi-dimensional arrays (register files, tiles, small memories)
Why: Natural way to model matrices, register files, or multi-lane buffers. Start with declaring and indexing; we’ll add resets/initialization with for later.

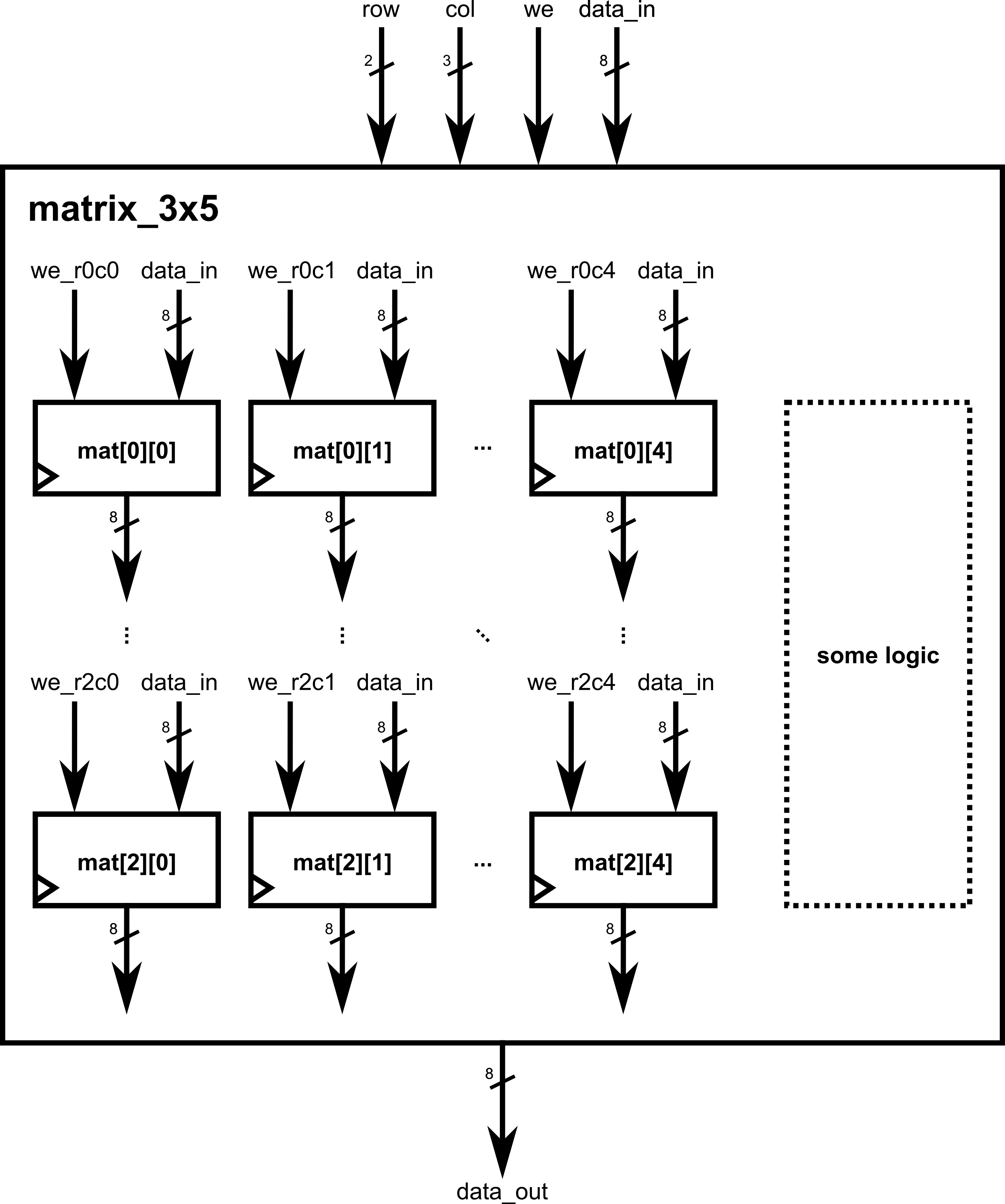

Example: 3×5 byte matrix (rows=3, cols=5). Indexing: [row][col]
module matrix_3x5(
input clk,
input reset,
input [1:0] row, // 0..2
input [2:0] col, // 0..4
input we, // write enable
input [7:0] data_in,
output reg [7:0] data_out
);
// 3 rows (0..2), 5 cols (0..4); each cell is 8 bits
reg [7:0] mat [0:2][0:4];
always @(posedge clk) begin
if (reset) begin
data_out <= 8'd0;
// (No mass reset here yet—covered in the next section)
end else begin
if (we) mat[row][col] <= data_in; // write one cell
data_out <= mat[row][col]; // read the same addressed cell
end
end
endmodule
ℹ️Tip: keep indices well-sized (2 bits for 0..3, 3 bits for 0..7) so synthesis knows the bounds.
for loops in clocked blocks to reset/initialize arrays
Why: When resetting or clearing arrays, a for loop describes repeat structure; synthesis unrolls it into parallel hardware. Use it for resets/initial fills inside @(posedge clk)—it’s clean and scalable.
Example A: Zeroing a 4×8 on reset (two nested for loops)
module matrix_clear_4x8(
input clk, reset, load,
input [1:0] row, input [2:0] col,
input [7:0] di,
output reg [7:0] do
);
reg [7:0] buf [0:3][0:7];
integer i, j;
always @(posedge clk) begin
if (reset) begin
// Loop unrolls in hardware; intent is a mass clear
for (i = 0; i < 4; i = i + 1)
for (j = 0; j < 8; j = j + 1)
buf[i][j] <= 8'd0;
do <= 8'd0;
end else begin
if (load) buf[row][col] <= di;
do <= buf[row][col];
end
end
endmoduleExample B: Initialize from a file (simulation-time) using $fopen/$fscanf
Note: File I/O is simulation-only (testbench or non-synthesizable code). It’s great to preload memories for verification. We’ll show a TB snippet that writes into the DUT over cycles.
Testbench snippet driving a DUT’s write port from a file:
`timescale 1ns/1ps
module tb_init_from_file;
reg clk=0, reset=1, we=0;
reg [1:0] row;
reg [2:0] col;
reg [7:0] data_in;
wire [7:0] data_out;
matrix_3x5 dut(
.clk(clk), .reset(reset),
.row(row), .col(col),
.we(we), .data_in(data_in), .data_out(data_out)
);
always #5 clk = ~clk;
integer fd, status;
initial begin
// Release reset
#20 reset = 0;
// Open file with triplets: row col value (e.g., "0 0 42")
fd = $fopen("init_3x5.txt", "r");
if (fd == 0) begin
$display("ERROR: cannot open init_3x5.txt");
$finish;
end
while (!$feof(fd)) begin
status = $fscanf(fd, "%d %d %d\n", row, col, data_in);
if (status == 3) begin
@(posedge clk);
we <= 1;
@(posedge clk);
we <= 0;
end
end
$fclose(fd);
// Read back one entry as a demo
row = 0; col = 0;
@(posedge clk);
$display("mat[0][0] readback = %0d", data_out);
#50 $finish;
end
endmoduleℹ️Alternative: $readmemh/$readmemb can bulk-load 1-D memories (classic ROM/RAM initialization). For 2-D, many flows flatten to 1-D or stream values via a TB like above. (Keep file I/O in TBs; it’s non-synthesizable.)
generate/genvar to replicate logic or modules at scale
Why: When you need N repeated lanes/slices, generate keeps code compact and consistent. Combine with parameters for configurable replication.

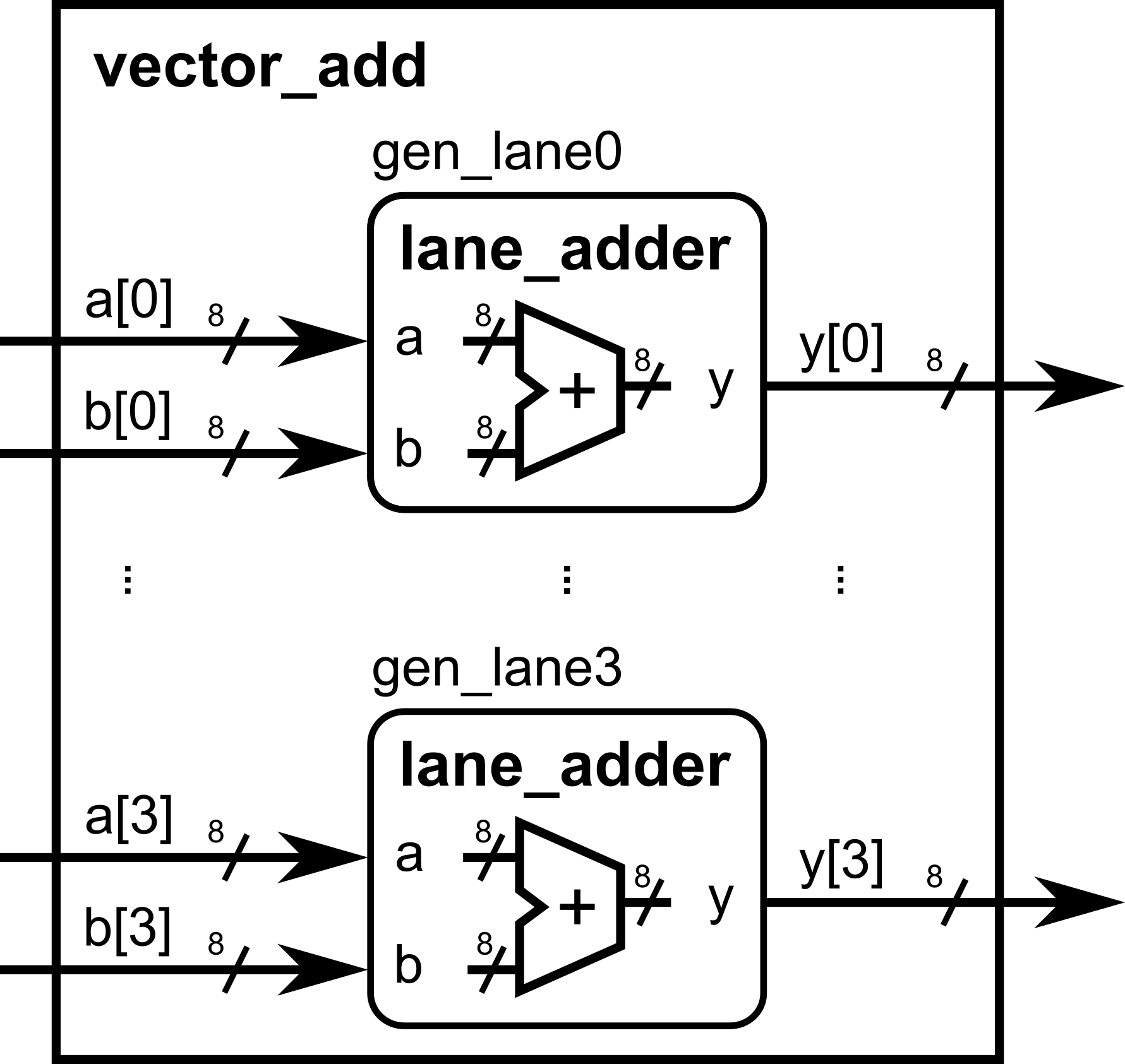

Example A: Replicate N identical lanes of an adder slice
module lane_adder #(parameter WIDTH=8)(
input [WIDTH-1:0] a, b,
output [WIDTH-1:0] y
);
assign y = a + b;
endmodule
module vector_add #(
parameter N = 4,
parameter WIDTH = 8
)(
input [WIDTH-1:0] a [0:N-1],
input [WIDTH-1:0] b [0:N-1],
output [WIDTH-1:0] y [0:N-1]
);
genvar k;
generate
for (k = 0; k < N; k = k + 1) begin : gen_lane
lane_adder #(.WIDTH(WIDTH)) u_add (
.a(a[k]), .b(b[k]), .y(y[k])
);
end
endgenerate
endmodule

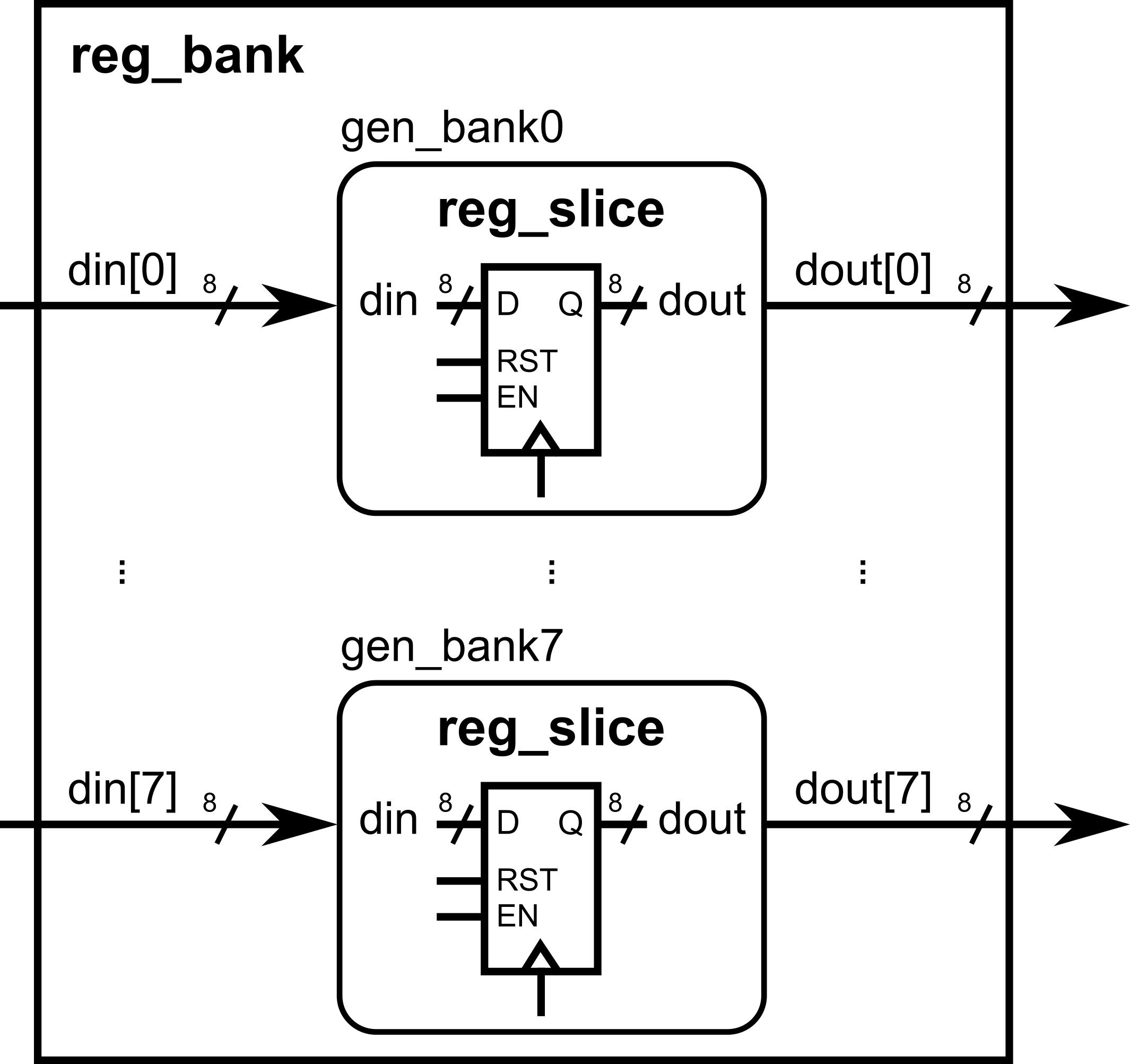

Example B: Generate replicated register slices
module reg_slice #(parameter WIDTH=8)(
input clk, reset, load,
input [WIDTH-1:0] din,
output reg [WIDTH-1:0] dout
);
always @(posedge clk) begin
if (reset) dout <= {WIDTH{1'b0}};
else if (load) dout <= din;
end
endmodule
module reg_bank #(
parameter N = 8,
parameter WIDTH = 8
)(
input clk, reset, load_all,
input [WIDTH-1:0] din [0:N-1],
output [WIDTH-1:0] dout[0:N-1]
);
genvar i;
generate
for (i = 0; i < N; i = i + 1) begin : gen_bank
reg_slice #(.WIDTH(WIDTH)) u_rs (
.clk(clk), .reset(reset), .load(load_all),
.din(din[i]), .dout(dout[i])
);
end
endgenerate
endmodule
ifdef/ifndef for conditional compilation
Why: Keep one codebase that can enable/disable features, change widths, or insert debug logic depending on a define. Great for feature flags and debug prints.
Define a macro at compile time: +define+DEBUG (simulator) or -DDEBUG (toolchain dependent).
Example A: Optional debug printing (simulation)
module datapath(
input clk, reset, en,
input [7:0] a, b,
output reg [7:0] y
);
always @(posedge clk) begin
if (reset) y <= 8'd0;
else if (en) y <= a + b;
`ifdef DEBUG
// Simulation-only prints when DEBUG is defined
if (en) $display("DBG: a=%0d b=%0d y=%0d @%0t", a, b, y, $time);
`endif
end
endmoduleExample B: Feature flag changes width and adds a port
// If WIDE_MODE is defined, we use 16-bit datapath; else 8-bit.
`ifdef WIDE_MODE
`define DW 16
`else
`define DW 8
`endif
module flex_datapath(
input clk, reset, en,
input [`DW-1:0] a, b,
output reg [`DW-1:0] y
`ifdef HAS_SATURATE
, input saturate_en // extra port only when feature exists
`endif
);
always @(posedge clk) begin
if (reset) y <= {`DW{1'b0}};
else if (en) begin
y <= a + b;
`ifdef HAS_SATURATE
// (Sketch) Example of conditional feature body
// if (saturate_en && y overflowed) y <= MAX_VALUE;
`endif
end
end
endmoduleUse ifndef to provide defaults when a macro isn’t set:
